24V Samsung LED source 93W included. Dimmable.

Flux = 9957 lm

Eff. : 106 lm/W

Diameter: 490mm

Height: 230mm

Weight: 2.6kg

Material: Plastic

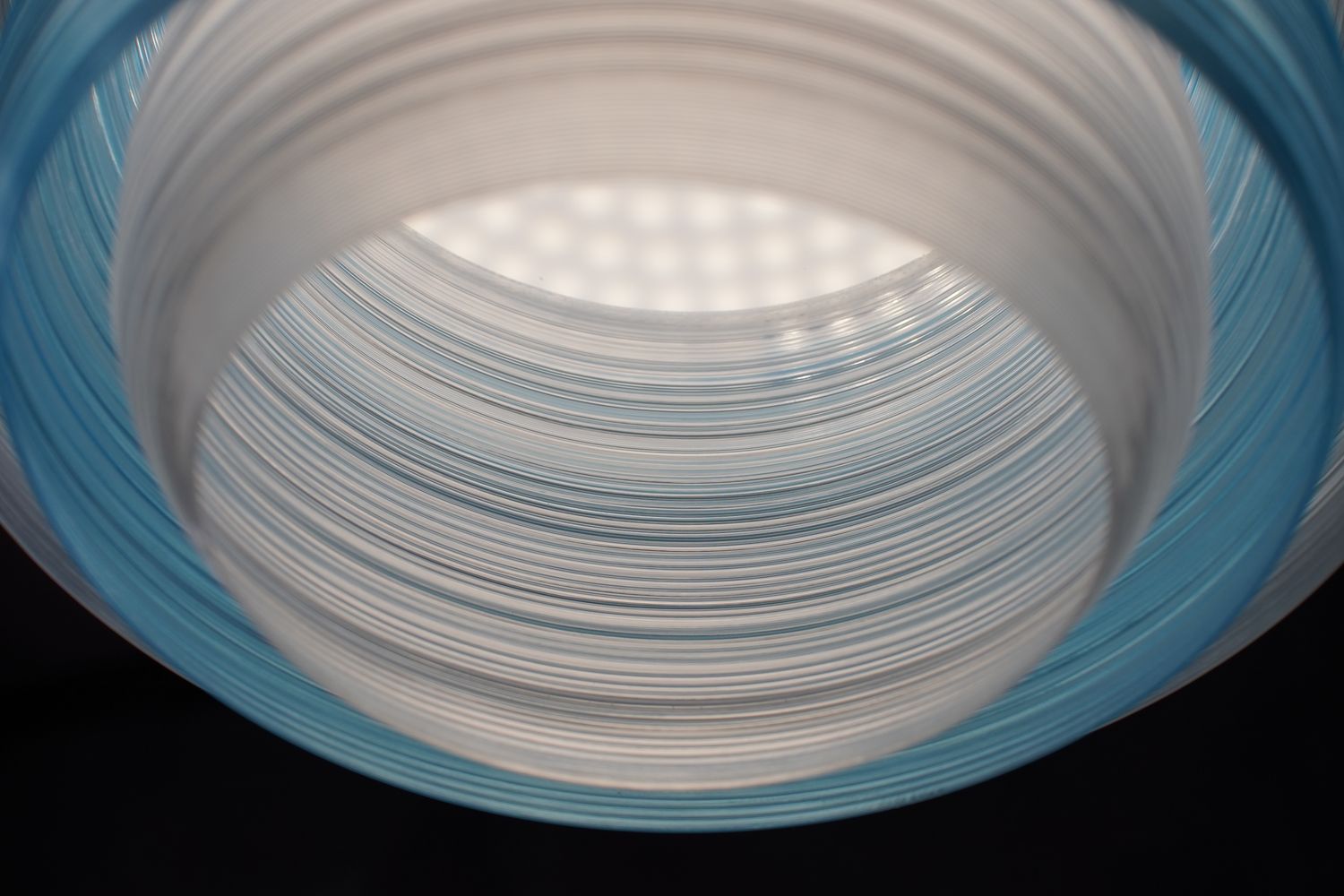

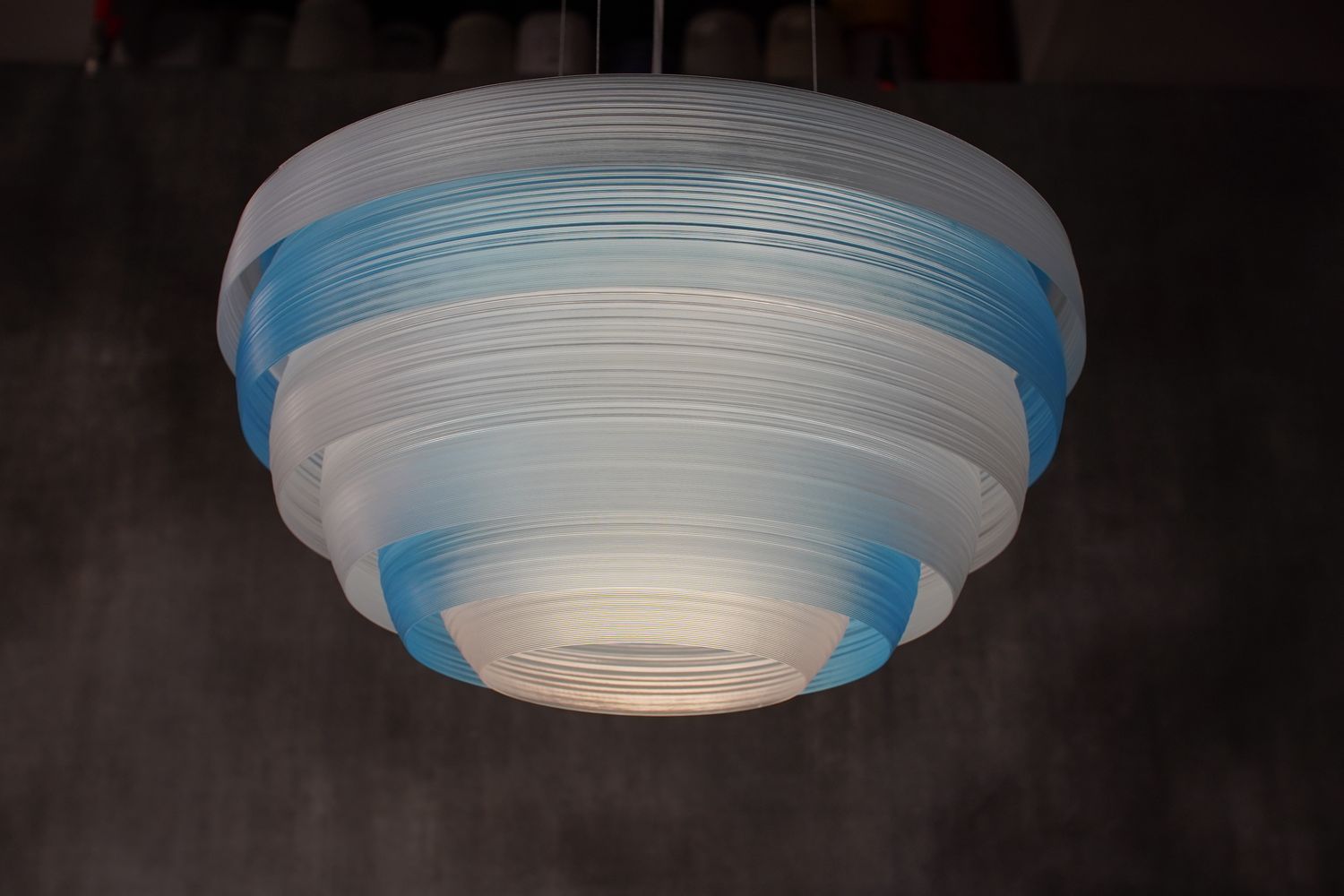

Color variations: Second from the middle and last but one layers are in colour. Except for yellow and pink, where coloured is only second from the middle layer.

Blue: Pantone 2925 EC

Green: Pantone 369EC

Yellow: Pantone 129EC

Pink: Pantone 226E

Recommended LED Drivers(not included):

Meanwell XLG-100-24-A    Manual dimming function.

Meanwell ELG-100-24-AB  Manual + 0-10V dimming

Meanwell ELG-100-24-DA  Dali dimming

Power source can be placed in the ceiling rosette.

Warranty 2 years.

Made in Czech Republic

Eulumdat data Download.

Installation guides & 3D Models downloads
